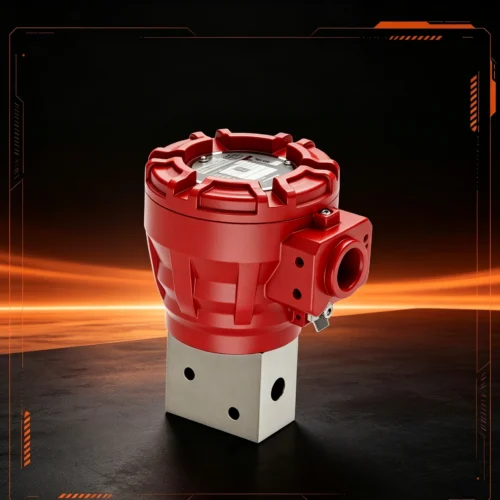

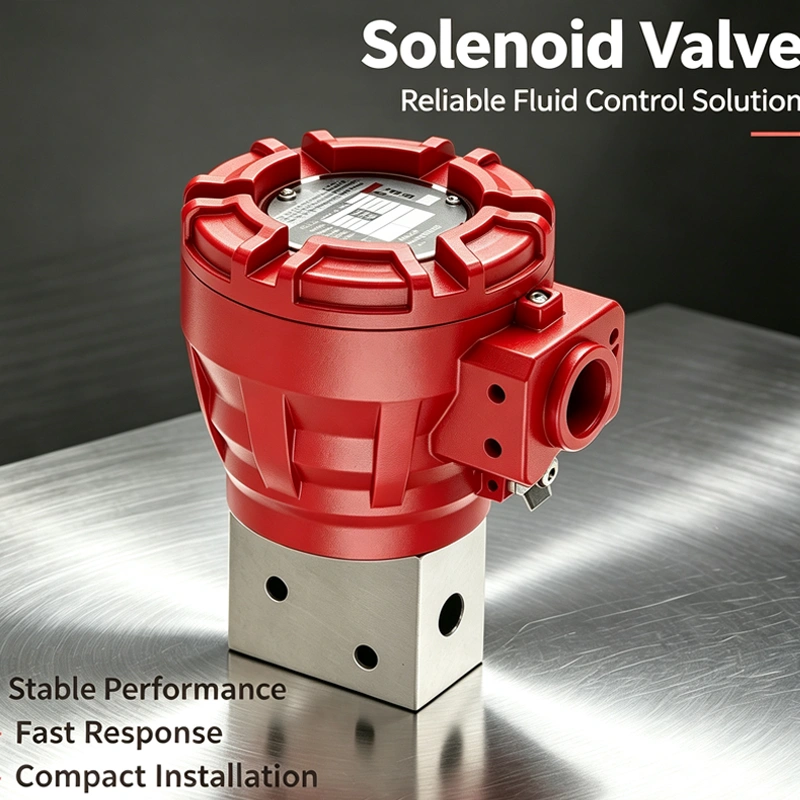

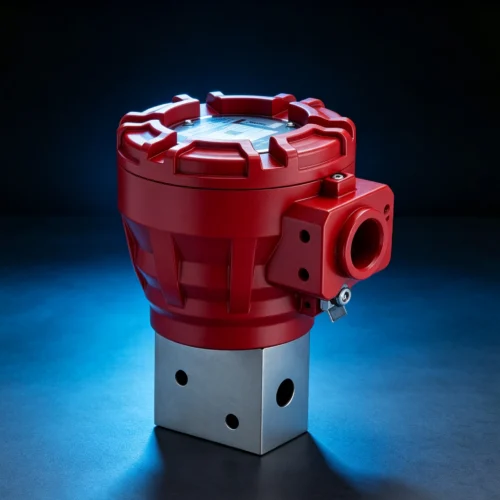

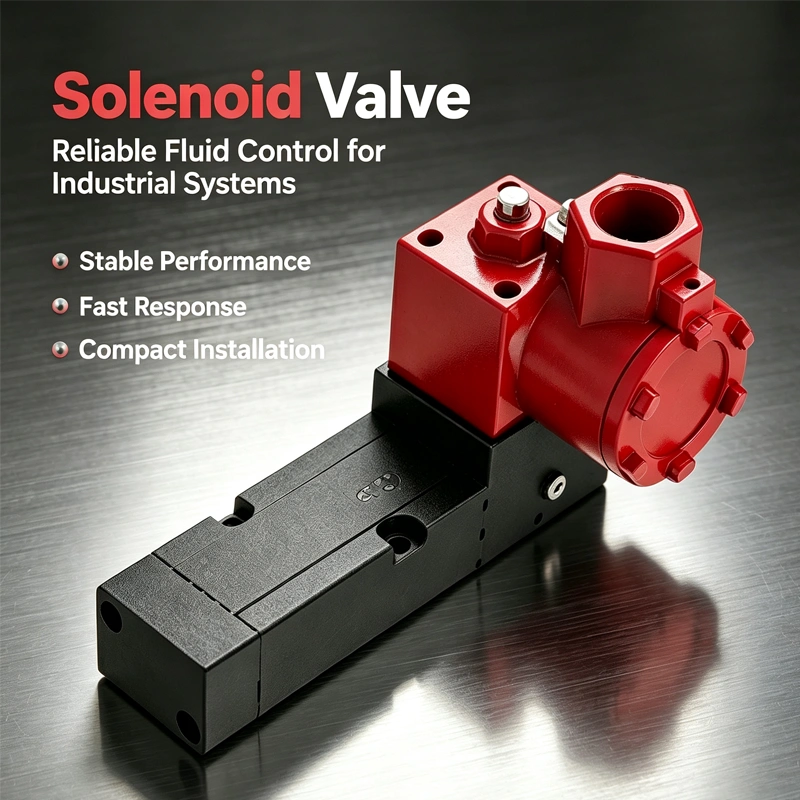

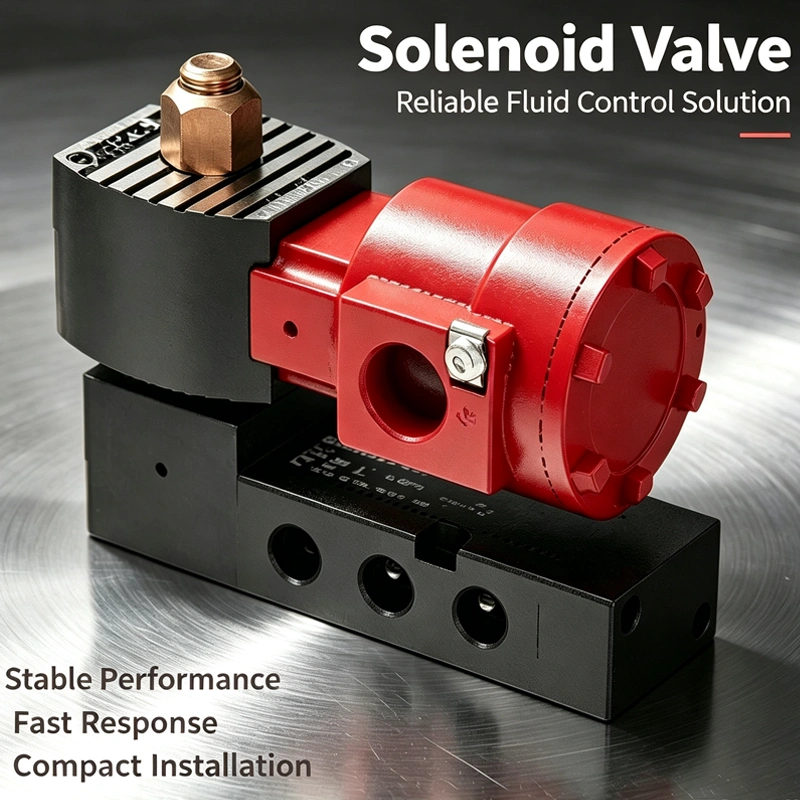

Flameproof & Dust Explosion-proof Solenoid Valve
The MSV200 flameproof & dust explosion-proof solenoid valve is engineered for industrial sites with both gas and dust hazardous conditions. It supports 2-position 3-way and 2-position 5-way air circuit structure, with pilot-operated and direct-acting control principles optional.
This solenoid valve can be installed by surface mounting or pipe mounting. The operating temperature covers T6/T5/T4 temperature classes, with medium temperature ranging from -40℃ to 130℃. Standard voltages include 24VDC, 110VAC and 220VAC. It reaches IP67 ingress protection rating.
Available housing materials are aluminum alloy, stainless steel and brass. Air port connections support G1/4, 1/4NPT, 1/2NPT, while electrical connection adopts M20*1.5, 1/2NPT and other specifications. Widely used in chemical, pharmaceutical and other explosion-risk industrial automation control systems.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Principle
1、Housing Material: Aluminum alloy or 316 stainless steel
2、Operating Voltage: 24 V DC, 220 V AC
3、Coil Power: 1.8 W, 3.7 W, 10 W, 15 W
4、Grounding Bolt: 316 stainless steel
5、Explosion / Ingress Protection Rating: Ex d IIC T6 Gb / Ex tD A21 IP67 T80°C
6、Coil Insulation Class: Class H
7、Control Type: Single-acting (spring-return) or double-acting (bistatic) – both available
8、Additional Features: Coil built-in with power-off protection, peak overflow element, and surge 9、suppression device; unique waterproof and moisture-proof alarm indication function
Key parameters
| parameter catalog | Value |
| Explosion Protection Type | Flameproof + Dust |
| Air Circuit Structure | 2-position 3-way / 2-position 5-way |
| Control Principle | Pilot-operated / Direct-acting |
| Mounting Type | Surface mounting / Pipe mounting |
| Operating Temperature | T6: -20°C ~ 40°C; T5: -20°C ~ 60°C; T4: -20°C ~ 80°C |
| Standard Voltage | 24VDC/110VAC/220VAC |
| Ingress Protection Rating | IP67 |
| Power Consumption | 10W/3.7W/1.8W |
| Optional Material | Aluminum alloy / Stainless steel / Brass |
| Air Port Connection | G1/4, 1/4NPT, 1/2NPT, etc. |
| Electrical Connection | M20*1.5, 1/2NPT, etc. |
| Medium Temperature | -40°C ~ 130°C |
| Working Pressure | 0 ~ 1MPa, 0.15 ~ 0.8MPa, 0.15 ~ 1.2MPa, 0 ~ 10MPa |
FAQ
We are a manufacturer with our own factory and independent R&D team. Our explosion-proof solenoid valves are designed and produced in-house, allowing us to control quality, reduce costs, and offer competitive pricing directly to our customers.
Yes, customization is available. We support customized voltage (24VDC/220VAC), coil power (1.8W/3.7W/10W/15W), housing material (aluminum alloy or 316 stainless steel), and control type (single or double control).
Our solenoid valve features ExdIICT6 Gb / ExtDA21 IP67 T80°C certification, with IP67 waterproof protection. It is suitable for hazardous gas environments and can operate reliably in harsh conditions.
Yes, it includes built-in power-off protection, peak overflow element, and surge protection device. It also features a unique waterproof and moisture-proof alarm indicator for easy maintenance.
The coil insulation class is Class H, and the grounding bolt is made of 316 stainless steel for superior corrosion resistance and safety.
It is widely used in chemical, petroleum, natural gas, and other industrial automation systems requiring explosion-proof and waterproof performance in hazardous environments.
