Temperature Transmitter | -200~1700°C | RTD/TC/Bimetal | Ex d ia IIC T6 | 0.1% Accuracy

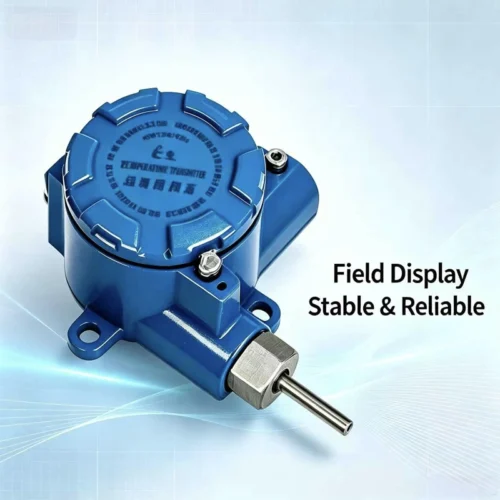

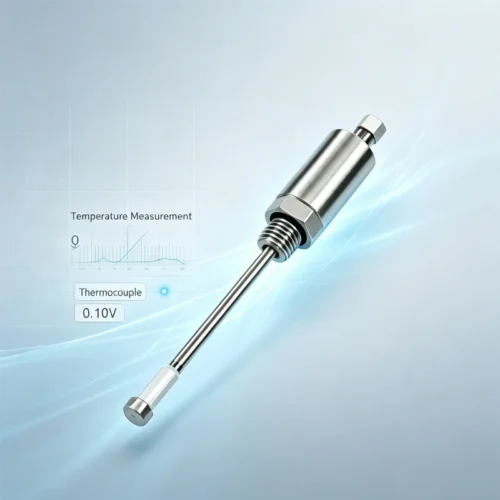

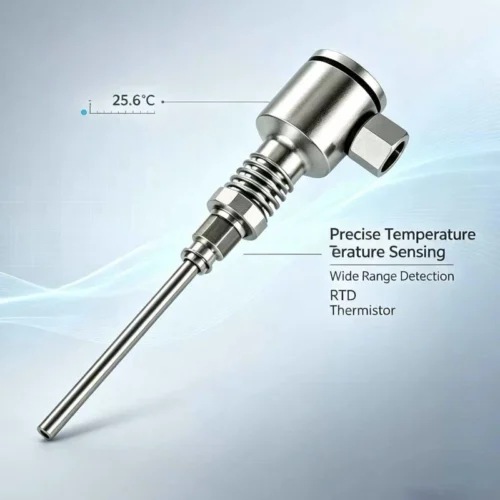

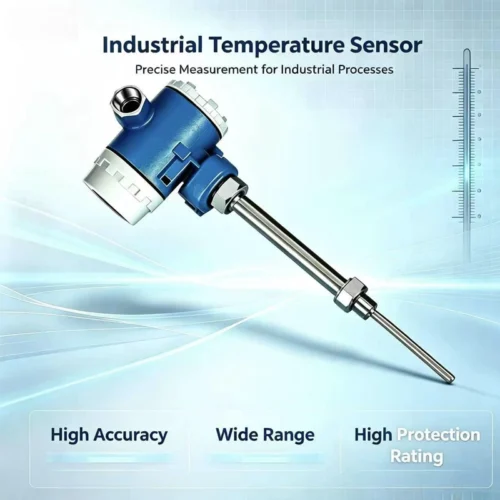

This temperature transmitter adopts imported thermal sensing elements for high-precision measurement. It offers a complete range of options including RTD, thermocouple, and bimetal thermometers to meet various temperature measurement needs. With a wide temperature range from -200°C to 1700°C, it is suitable for diverse media including liquids, gases, and steam compatible with 304, 316, or 316L stainless steel. It features selectable accuracy of 0.5, 0.25, or 0.1 class, with output signals including 4-20mA, 0-5V, 0-10V, 1-5V, thermal resistance, and thermocouple, with customizable options. The transmitter offers excellent EMC performance, high protection levels, and optional LED digital or LCD display. Explosion-proof ratings include Ex d IIC T6 and Ex ia IIC T6. Installation and electrical connections are customizable.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Features
- Imported thermosensitive elements adopted for high measurement accuracy
- Complete product range: RTDs, thermocouples, bimetallic thermometers, etc., meeting temperature measurement needs across various applications
- Wide temperature range: suitable for media temperature measurement from -200°C to 1700°C
- High-precision transmitter circuit with multiple output signal types
- Excellent EMC design with strong anti-interference capability
- High protection rating, suitable for various harsh working conditions
- Multiple accessories available, supporting customized configurations
Technical Specifications
| Technical Specifications | parameter value |
| Measuring Medium | Various liquids, gases, or steam compatible with 304, 316, or 316L stainless steel; compatible materials available for corrosive media |
| Measuring Range | -200°C ~ 1700°C |
| Accuracy | Selectable: Class 0.5, Class 0.25, Class 0.1 |
| Output Signal | 4~20mA, 0~5V, 0~10V, 1~5V, RTD, thermocouple; other signal types customizable |
| Relative Humidity | ≤95% (at 40°C) |

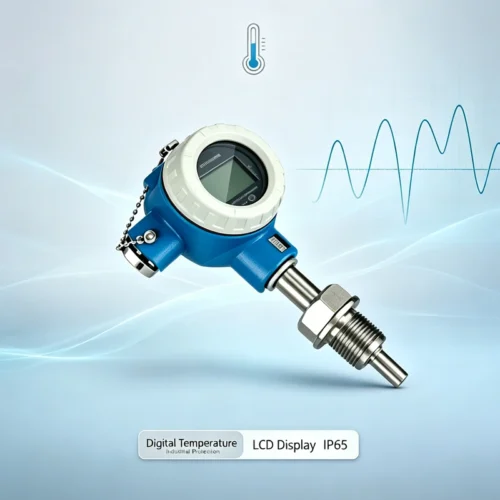

| Local Display | Optional LED digital tube or LCD digital display |
| Explosion-Proof Rating | Flameproof: dI, dIIC T6; Intrinsic Safety: iaI, iaIIC T6 |
| Mounting Method | Customizable specifications |
| Electrical Connection | Explosion-proof junction box, PG7 waterproof cable gland, etc.; special electrical connections customizable |
FAQ
We are a manufacturer with our own factory and independent R&D team. Our temperature transmitters are designed and produced in-house.
Yes, we support customized temperature ranges (-200°C to 1700°C), output signals (4-20mA/0-5V/0-10V/1-5V), and process connections.
We offer RTD, thermocouple, and bimetal thermometer options to meet various temperature measurement needs.
It offers selectable accuracy of 0.5, 0.25, or 0.1 class with fast response and excellent EMC performance.
It features Ex d IIC T6 and Ex ia IIC T6 explosion-proof ratings, suitable for hazardous environments.
It is widely used in chemical, petroleum, and industrial process control requiring reliable temperature measurement.
