How a Smart Valve Positioner Can Cut Your Energy Costs and Improve Safety

September 23, 2026

Overview

In industrial process control, valve positioners are often seen as just a control component—but did you know that choosing the right one can significantly reduce your operating costs and improve system safety?This article explores two key advantages of modern smart valve positioners:

Energy Savings: How low air consumption directly reduces your electricity bill.

3-Off Position Safety: How built-in safety functions eliminate the need for external solenoid valves.

一、Energy Savings: The Hidden Cost of Air Consumption

Why Air Consumption Matters

Pneumatic valve positioners consume compressed air continuously, even when the valve is not moving. This “static air consumption” adds up over time—and compressed air is one of the most expensive utilities in a plant.

The Numbers: MVP Positioner vs. Conventional Positioner

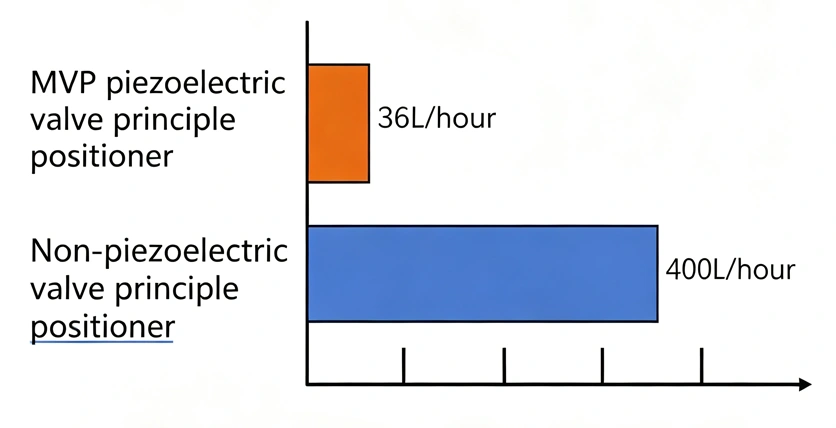

The chart below compares the static air consumption of two types of positioners:

How Much Can You Save?

Metric	Calculation	Result
Annual Air Savings	(0.4 – 0.036) × 24h × 365 days	3,200 standard cubic meters
Annual Electricity Savings	3,200 × 0.44 kWh	1,408 kWh
Equivalent Energy Saved	—	128 kg standard oil, 160 kg standard coal
Annual Cost Savings	3,200 × 0.44 × $1	$1,408 per year

Note: Cost savings are calculated based on $1/kWh. Actual savings may vary depending on local electricity rates.

Bottom line: By choosing a low-consumption valve positioner, you can save over $1,400 per unit per year in energy costs alone. For plants with dozens or hundreds of valves, this translates into substantial operational savings.

二、3-Off Position Safety: Built-In Protection Without External Components

What Is 3-Off Position?

The “3-off position” function means the valve positioner automatically moves the valve to a safe position when:

Power is lost (power-off)
Air supply is lost (air-off)
Control signal is lost (signal-off)

This is critical for fail-safe operation in hazardous or high-risk processes.

How It Works: No External Solenoid Valve Needed

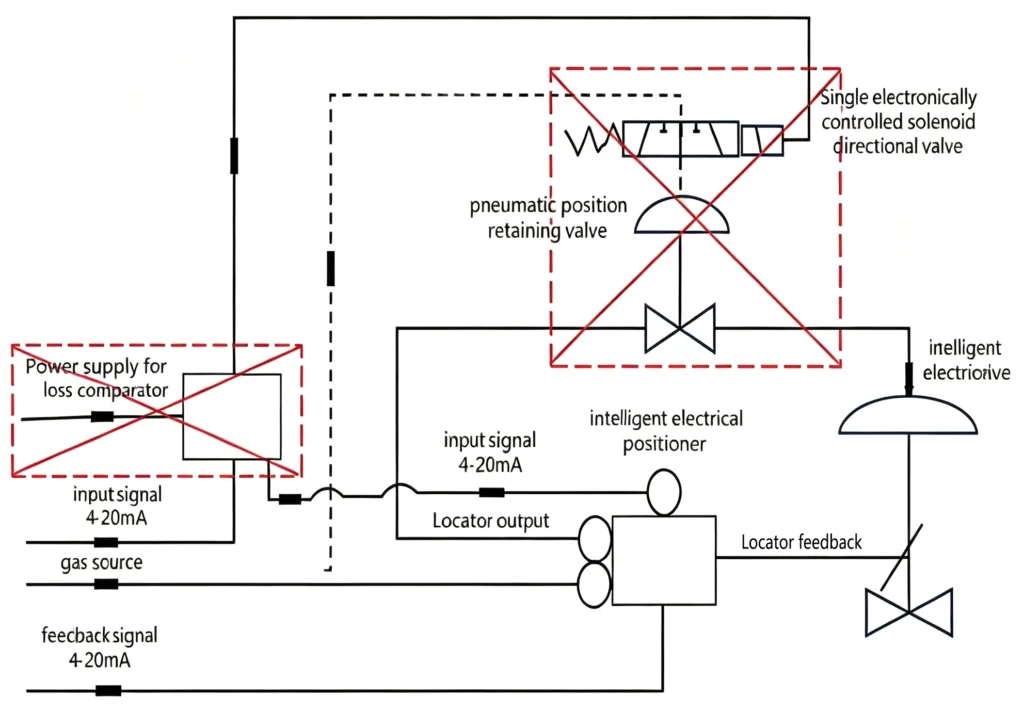

Traditional safety systems require external solenoid valves, air lock valves, and signal comparators to achieve fail-safe positioning. This adds complexity, cost, and potential failure points.the diagram below shows how a smart valve positioner with built-in 3-off position function eliminates these external components:

As shown in the diagram:

Red dashed boxes indicate components that are no longer needed (external solenoid valve, air lock valve, signal comparator).
The smart valve positioner integrates all safety functions internally.

Key Benefits of Built-In 3-Off Position

Benefit	Description
Simplified System	No external solenoid valves, air lock valves, or signal comparators required
Reduced Cost	Lower component count means lower purchase and maintenance costs
Higher Reliability	Fewer components = fewer potential failure points
Fail-Safe Operation	Automatic valve positioning on power, air, or signal loss
Easy Installation	Compact design simplifies wiring and piping

三、Additional Features of Modern Smart Valve Positioners

Beyond energy savings and safety, modern valve positioners offer:

Auto-Tuning: Automatically optimizes valve zero and span for precise control.
Self-Diagnosis: Monitors current values, travel time, deadband, and other parameters.
Multiple Communication Protocols: HART, Profibus PA, and FF bus.
Configurable Valve Characteristics: Linear, quick-open, custom 20-point curves, or dual curves.
Explosion-Proof Options: Intrinsically safe (Ex ia) and explosion-proof (Ex db) models available.

Small Conclusion

Choosing a smart valve positioner is not just about control accuracy—it’s about reducing operating costs and improving system safety.

With <36L/h static air consumption, a smart valve positioner can save you over $1,400 per year per unit. And with built-in 3-off position function, you can eliminate external solenoid valves and simplify your safety system.
